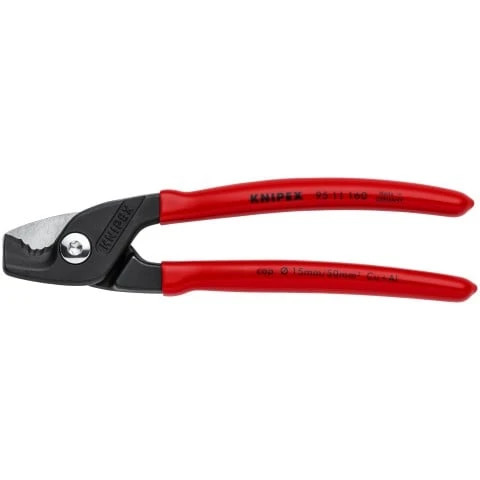

Knipex 9511160 6-1/4″ (160mm) StepCut Cable Shears
Cut Large Cables with Half the Effort
Stop struggling with bulky, two-handed cable cutters. The Knipex StepCut® (95 11 160 SBA) is a compact powerhouse that makes cutting multi-core cables up to 15mm (1/0 AWG) easier than ever before. Its secret lies in the patented stepped cutting edges.
By staggering the cutting edges, the StepCut® engages wires one after another rather than all at once. This clever engineering reduces the physical force required for a cut by up to 40% compared to standard cable shears of the same length. At just 6-1/4 inches, it fits perfectly in your pocket or tool pouch while delivering the performance of much larger tools.
Why the StepCut® belongs in your tool pouch:
- Stepped Cutting Edges: The jaws feature a "stair-step" geometry that bites into the cable strands sequentially, ensuring a smooth, clean cut every time.
- High-Leverage Design: Optimized joint position provides maximum mechanical advantage for one-handed operation.
- Premium Construction: Forged from high-grade special tool steel and oil-hardened; induction-hardened edges (approx. 54 HRC) stay sharp longer.
- Anti-Pinch Guard: Integrated safety feature prevents your fingers from getting pinched at the end of a cut.
- Adjustable Bolted Joint: Allows for precise, wobble-free movement and can be readjusted over the tool's lifespan.
Specifications
| Feature | Specification |
| Length | 6-1/4 Inches (160 mm) |
| Cutting Capacity (Copper) | 50 mm² / 15 mm Ø (1/0 AWG) |
| Material | High-Grade Special Tool Steel, Forged |
| Edge Hardness | Approx. 54 HRC |
| Handle Type | Non-slip Plastic Coated |
| Finish | Black Atramentized with Polished Head |
| Part Number | 95 11 160 SBA |
Frequently Asked Questions
+ What is the advantage of "StepCut" vs. standard shears?
Standard shears try to cut the entire cable at once, which requires massive hand pressure. The StepCut edges are staggered so they cut through individual strands in sequence. This makes cutting 1/0 AWG cable feel like cutting a much smaller wire.
+ Can I use these to cut steel-reinforced cable (ACSR)?
No. These are precision shears designed specifically for copper and aluminum cables. Using them on steel-core wire or ACSR will damage the cutting edges.
+ Are these shears insulated for live work?
No. These have plastic-dipped handles for grip and comfort, but they are not VDE-rated. For 1000V insulated versions, look for Knipex models with red/yellow handles.
+ Is the 6-1/4" size large enough for professional work?
Surprisingly, yes. Because of the 40% reduction in effort, this compact tool can handle the same multi-core copper cables that usually require 8 or 10-inch cutters, saving you significant space and weight in your tool belt.
