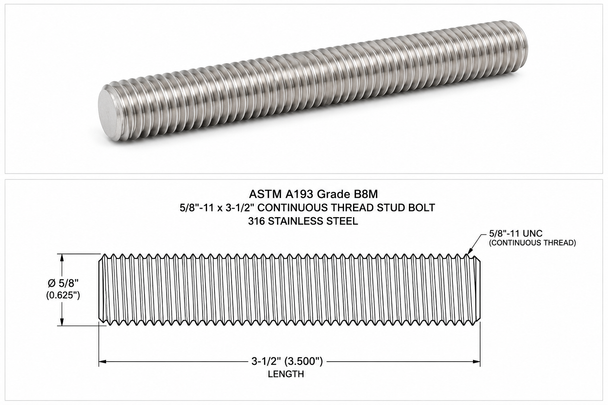

ASTM A193 Grade B8M 5/8-Inch x 3-1/2" Continuous Thread Stud Bolt – Premium 316 Stainless Steel – High-Pressure/High-Temperature Flange Fastener
Elite 316 Stainless Steel Matrix. ASTM A193 Code Compliance. High-Pressure Flange Security.
The ASTM A193 Grade B8M 5/8" x 3-1/2" Continuous Thread Stud Bolt sets an industrial benchmark for fastening integrity across demanding high-pressure, chemical-heavy processing fields. Precision-machined from premium AISI 316 stainless steel, this specialized industrial bolt stud is explicitly engineered to handle high-temperature pressure piping configurations, pipeline valves, process vessel manifolds, and marine assemblies. It provides mechanical engineers, pipeline contractors, and refinery crews with the high tensile strength and structural sealing capacity required to bolt down heavy ANSI/ASME pipe flanges without risk of thread galling or catastrophic yielding under extreme thermal stress.
Relentless chemical defense and uniform load distribution are engineered straight into the core of this heavy-duty fastener. Unlike standard commercial grades, Grade B8M contains an augmented molybdenum compound alloy blend, delivering elite resistance against chloride pitting, stress corrosion cracking, and harsh chemical cleaning agents. The continuous-thread architecture ensures that torque forces are dispersed evenly across the full 3-1/2 inch length when compressed under dual heavy hex nuts. Optimized with 11-pitch coarse threads (UNC), this structural fastener installs smoothly and provides tight mechanical friction seals designed to withstand high operational atmospheres.
Why the ASTM A193 Grade B8M 5/8" x 3-1/2" Stud Bolt Controls the Pipe Run:
- Premium AISI 316 Stainless Steel: Offers unmatched resistance against saltwater exposure, nitric acids, sulfurous vapors, and extreme industrial solvents.
- Continuous Thread Load Balancing: Full-length thread layout eliminates weak unthreaded shank points, managing high structural stretching loads safely.
- ASTM A193 High-Spec Certification: Meets rigorous international industrial codes for high-pressure, high-temperature service lines in petrochemical and gas layouts.
- Standard 11-TPI Coarse Threads: 5/8"-11 UNC thread configuration handles heavy manual torque limits while resisting stripping during tensioning procedures.
- Perfect for Hazardous Environments: The preferred, code-compliant choice for municipal wastewater facilities, offshore oil rigs, and pharmaceutical production floors.
Specifications
| Feature | Specification |
| Material Classification | ASTM A193 Grade B8M (Class 1) |
| Alloy Core Base | AISI 316 Grade High-Nickel Stainless Steel |
| Fastener Diameter | 5/8 Inch (0.625") |
| Overall Length | 3-1/2 Inches (3.50") |
| Thread Configuration / Style | 5/8" - 11 UNC (Coarse Series) / Full Continuous Thread |
| Tensile Strength Minimum | 75,000 PSI Minimum Threshold |
| Yield Strength Minimum | 30,000 PSI Strength Threshold |
| Application Scope | High-Pressure Flanges, Valves, Pressure Vessels, Corrosive Piping |
| Hardware Fitment | Mates with Standard ASTM A194 Grade 8M Heavy Hex Nuts |
Frequently Asked Questions
+ What is the primary difference between Grade B8 and Grade B8M stud bolts?
+ Does this 5/8" x 3-1/2" stud bolt package include the matching heavy hex nuts?
+ How do I prevent stainless steel thread galling when installing these flange studs?
+ Why are continuous thread studs used on pipe flanges instead of standard hex head cap screws?
Product Specifications
category_bullets: |
• B8M Flange Stud Core: Premium ASTM A193 Grade B8M 5/8" x 3-1/2" continuous thread stud bolt handles high-pressure piping flanges. • 316 Stainless Steel: Anti-acid alloy. • Full-Thread Form. |
selling_points: |
✔️ High-Temp Flange Fit: Engineered explicitly to endure extreme chemical processing pressures without thread yield. ✔️ Grade 316 Marine Protection: Resists corrosive saltwater and industrial pitting. |
