Description

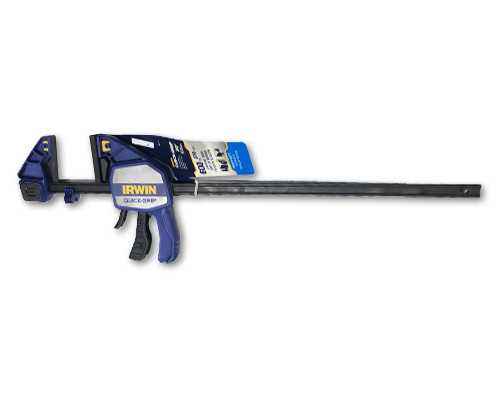

Irwin 1964715 36" XP600 Bar Clamp Spreader
Industrial Power for Large-Scale Projects.
The Irwin QUICK-GRIP 1964715 36-Inch XP600 is engineered for heavy-duty applications that require massive reach and extreme pressure. As the largest in the XP series, it delivers a consistent 600 lbs of sustained clamping force, making it the ultimate tool for large furniture assembly, door manufacturing, and heavy timber framing. The heat-treated carbon steel I-beam bar is specifically designed to resist bowing and flexing, even when extended to its full 36-inch capacity.
This versatile tool isn't just a clamp; the Quick-Change button allows you to convert it into a high-powered spreader in seconds—no tools required. The XP600 features a 3-3/4" throat depth and full-face swivel jaws with non-marring pads, ensuring pressure is distributed evenly across your workpiece without damaging finished surfaces.
Key Performance Features:
- 600 lbs Clamping Pressure: Provides the high-torque hold needed for structural gluing and large-scale fabrication.
- One-Handed Trigger: Ergonomic pistol-grip design allows you to position, tighten, and release the clamp with a single hand.
- Massive 36" Capacity: Ideal for wide glue-ups, large cabinetry, and commercial framing projects.
- Quick-Change Spreader Mode: Tool-free conversion allows you to push materials apart with the same 600 lbs of force.
- Reinforced I-Beam Bar: Heat-treated steel construction ensures the bar stays straight under maximum tension.
- Swivel Jaw & Removable Pads: Maintains a parallel grip on irregular shapes and protects delicate materials from indentations.
Specifications
| Feature | Technical Detail |
| Model Number | 1964715 |
| Clamping Capacity | 36 Inches (91 cm) |
| Clamping Force | 600 lbs (272 kg) |
| Throat Depth | 3-3/4 Inches |
| Bar Type | Heat-Treated Carbon Steel I-Beam |
| Spreader Range | 9-1/8" – 44-7/8" |
| Jaw Type | Full-Face Swivel with Removable Pads |
Frequently Asked Questions
How do I convert the 36" clamp into a spreader? +
Will the bar bend when applying the full 600 lbs of pressure? +
Are the non-marring pads solvent resistant? +
Click Here for more Bar Clamp Spreaders
Product Specifications
category_bullets: |
Extreme Power: Delivers 600 lbs of sustained clamping force for heavy-duty projects. 36-Inch Capacity: Large-format opening ideal for furniture, doors, and cabinetry. |
selling_points: |
✔️ Rigid I-Beam: Heat-treated carbon steel bar reduces flexing and bowing under pressure. ✔️ Even Distribution: Dual-locking swivel jaws ensure consistent force on workpieces. |
