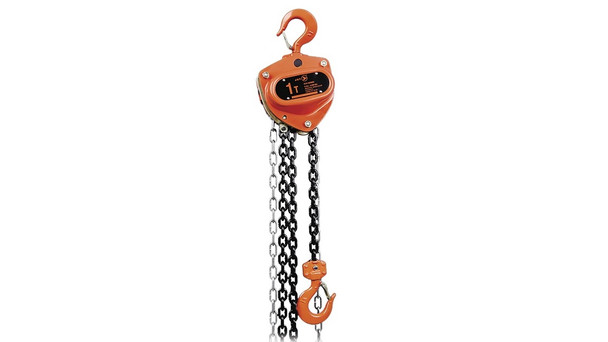

Jet 101316 KCH-1020L 1-Ton KCH Series Chain Hoist – 20ft. Lift

The Jet KCH-1020L 1-Ton Chain Hoist is engineered for reliable, safe, and efficient lifting in demanding industrial and commercial environments. With a 2,200 lb rated capacity and a 20-foot standard lift, this hoist delivers smooth operation and long service life for maintenance shops, warehouses, construction sites, and manufacturing facilities. Designed with an automatic overload protection device, the hoist is factory-preset to prevent dangerous overloading without requiring any operator input—enhancing safety and protecting internal components. A triple spur gear system ensures efficient power transfer and reduced operator effort, while the Grade 100 load chain provides superior strength and durability. The KCH Series features exclusive premium-grade, non-asbestos brake discs for dependable stopping power and extended wear life. Each hoist is load tested to 150% of its rated capacity and includes certification for added assurance. Manufactured in an ISO 9001-certified facility and fully compliant with ANSI B30.16 standards, this hoist meets strict quality and safety requirements.

Key Features:

• 1-ton (2,200 lb) rated lifting capacity
• 20 ft. standard lift
• Automatic overload protection (factory preset)
• Triple spur gearing for smooth, efficient operation
• Grade 100 load chain for increased strength
• Non-asbestos brake discs for long service life
• Load tested to 150% of rated capacity (certificate included)
• ANSI B30.16 compliant
• Manufactured in an ISO 9001-certified factory
